Štvanice Footbridge in Prague / Clean Architekti s.r.o + Bridge Buildings s.r.o

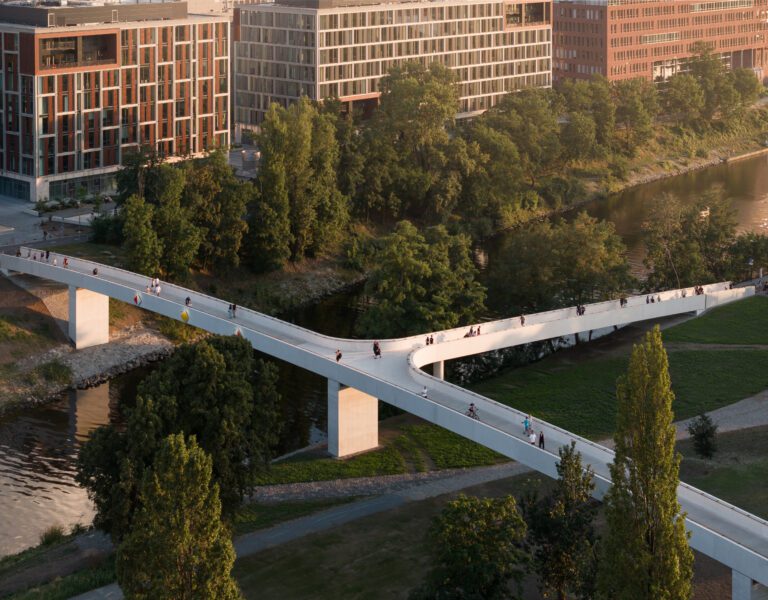

Textual content description supplied by the architects. This light spatial curve of the footbridge is constructed as a clean path based mostly on the dynamics of pedestrian and bike owner motion. The development of the bridge humbly responds to the panorama of Prague, to the connection to the Holešovice and Karlín banks, in addition to to the connection of Štvanice island.
The bridge is supported by two embankment abutments, two piers on the perimeters of Štvanice island, and two piers within the unnavigable arm of the Vltava River. A ramp descends freely in direction of the island, the plan curve of which copies the curve of the sting of the island. The tip span of the footbridge on the Holešovice facet descends to connect with the extent of the pavement easily and barrier-freely on the embankment. The span is designed to be vertically movable on the assist level the place a hydraulic piston mechanism is positioned to supply a vertical elevate to the flood stage Q1000.
The bridge is product of high-quality ultra-high efficiency fiber bolstered concrete (UHPFRC) with a floor much like shiny white marble. The primary supporting construction of the bridge consists of a steady bolstered concrete beam with longitudinal prestressing and an H-shaped cross-section. These are 2 full-walled facet parapet beams with an intermediate deck plate that’s supported by transverse ribs. When it comes to manufacturing and meeting, it’s a segmental bridge construction consisting of 57 prefabs.
A part of the construction is a decorative bronze deal with with figural animal motifs on the ends by the sculptor Aleš Hvízdal. The lighting is built-in into the handrail. On the island of Štvanice, on the entrance to the footbridge, there’s a figural sculpture known as The River by the sculptor Jan Hendrych.
